NCP170AMX150TCG | onsemi

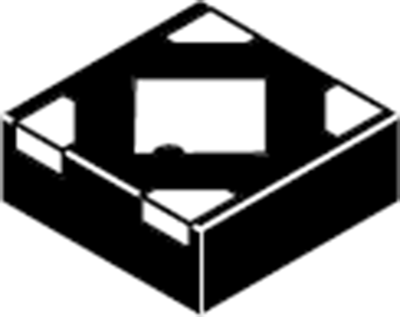

Voltage regulator, 1.5 VDC, 150 mA, positive, XDFN-4, NCP170AMX150TCG
Unit Price (€ / pc.)
0.2071 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Voltage regulator, NCP170AMX150TCG, ONS
The NCP170AMX150TCG CMOS low dropout regulator is designed specifically for portable battery-powered applications which require ultra-low quiescent current. The ultra-low consumption of typ. 500 nA ensures long battery life and dynamic transient boost feature improves device transient response for wireless communication applications.
Features
- Ultra-low quiescent current Typ. 0.5 µA
- High output voltage accuracy ±1%
- Over-current protection
- Thermal shutdown protection
Applications
- Battery powered equipment
- Portable communication equipment
- Cameras, image sensors and camcorders
Technical specifications
| Anzahl der Regler | 1 | |
| Ausführung | fest | |
| Ausgangsspannungsbereich | 1,5 VDC | |
| Ausgangsstrom | 150 mA | |
| Eingangsspannungsbereich | 2,2-5,5 V | |
| Gehäuse | XDFN-4 | |
| max. Temperatur | 85 °C | |
| min. Temperatur | -40 °C | |
| Montage | SMD | |
| Polarität | positiv |
Download
Logistics
| Zolltarifnummer | 85423390 |
| Originalverpackung | Rolle mit 5.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 6/8/11 |
| SVHC frei | Yes |
