NCP170BMX310TCG | onsemi

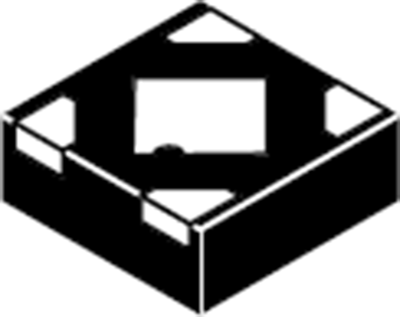

Voltage regulator, 3.1 VDC, 150 mA, positive, XDFN-4, NCP170BMX310TCG
Unit Price (€ / pc.)
0.2071 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Voltage regulator, NCP170BMX310TCG, ONS
The NCP170BMX310TCG CMOS low dropout regulator is designed specifically for portable battery-powered applications which require ultra-low quiescent current. The ultra-low consumption of typ. 500 nA ensures long battery life and dynamic transient boost feature improves device transient response for wireless communication applications.
Features
- Ultra-low quiescent current Typ. 0.5 µA
- High output voltage accuracy ±1%
- Over-current protection
- Thermal shutdown protection
Applications
- Battery powered equipment
- Portable communication equipment
- Cameras, image sensors and camcorders
Technical specifications
| Number of Regulators | 1 | |
| Version | fixed | |
| Output voltage DC | 3.1 VDC | |
| Output current | 150 mA | |
| Input voltage AC | 2.2-5.5 V | |
| Enclosure | XDFN-4 | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Polarity | positive |
Download
Logistics
| Customs tariff number | 85423390 |
| Original Packaging | Reel with 5,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
