NCP176BMX180TCG | onsemi
Voltage regulator, 1.8 VDC, 500 mA, positive, XFDFN-6, NCP176BMX180TCG
Unit Price (€ / pc.)
0.1416 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Voltage regulator, NCP176BMX180TCG, ONS
The NCP176BMX180TCG is CMOS LDO regulator featuring 500 mA output current. The input voltage is as low as 1.4 V and the output voltage can be set from 0.7 V. This device is a high performance 500 mA low dropout linear regulator (LDO) delivering excellent noise and dynamic performance.
Features
- Quiescent current typ. 60 µA
- Stable with small 1 µF ceramic capacitors
- Over-current protection
- Thermal shutdown protection: 165°C
Applications
- Battery powered equipment
- Portable communication equipment
- Cameras, image sensors and camcorders
Technical specifications
| Number of Regulators | 1 | |
| Version | fixed | |
| Output voltage DC | 1.8 VDC | |
| Output current | 500 mA | |
| Input voltage AC | 1.4-5.5 V | |

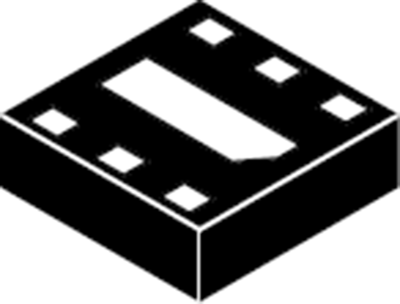

| Enclosure | XFDFN-6 | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Polarity | positive |
Download
Logistics
| Customs tariff number | 85423390 |
| Original Packaging | Reel with 5,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
