NCP186AMX180TAG | onsemi

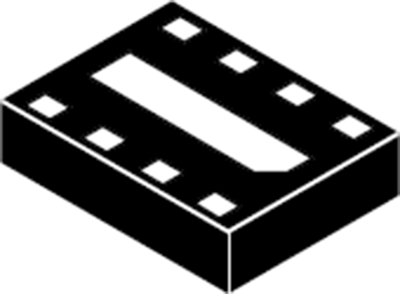

Voltage regulator, 1.8 VDC, 1 A, positive, XFDFN-8, NCP186AMX180TAG
Unit Price (€ / pc.)
0.2213 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
Voltage regulator, NCP186AMX180TAG, ONS
The NCP186AMX180TAG is a CMOS LDO regulator that features a high performance and low dropout linear regulator (LDO) that delivers excellent noise and dynamic performance. The regulator features a low noise of 48 µVRMS, PSRR of 75 dB at 1 kHz and very good line/load transient performance, which makes this device an ideal choice for powering precision noise sensitive circuitry in portable applications.
Features
- High output voltage accuracy ±1%
- Stable with small 1 µF ceramic capacitors
- Over-current protection
- Thermal shutdown protection: 165°C
Applications
- Battery powered equipment
- Portable communication equipment
- Cameras, image sensors and camcorders
Technical specifications
| Anzahl der Regler | 1 | |
| Ausführung | fest | |
| Ausgangsspannungsbereich | 1,8 VDC | |
| Ausgangsstrom | 1 A | |
| Eingangsspannungsbereich | 1,8-5,5 V | |
| Gehäuse | XFDFN-8 | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -40 °C | |
| Montage | SMD | |
| Polarität | positiv |
Download
Logistics
| Zolltarifnummer | 85423390 |
| Originalverpackung | Rolle mit 5.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 6/8/11 |
| SVHC frei | Yes |
