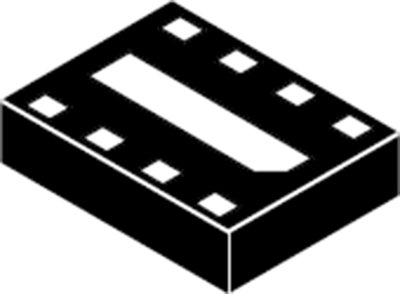

NCP186BMX180TAG | onsemi
Voltage regulator, 1.8 VDC, 1 A, positive, XFDFN-8, NCP186BMX180TAG
Unit Price (€ / pc.)
0.2213 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Voltage regulator, NCP186BMX180TAG, ONS
The NCP186BMX180TAG is a CMOS LDO regulator that features a high performance and low dropout linear regulator (LDO) that delivers excellent noise and dynamic performance. The regulator features a low noise of 48 µVRMS, PSRR of 75 dB at 1 kHz and very good line/load transient performance, which makes this device an ideal choice for powering precision noise sensitive circuitry in portable applications.
Features
- High output voltage accuracy ±1%
- Stable with small 1 µF ceramic capacitors
- Over-current protection
- Thermal shutdown protection: 165°C
Applications
- Battery powered equipment
- Portable communication equipment
- Cameras, image sensors and camcorders
Technical specifications
| Number of Regulators | 1 | |
| Version | fixed | |
| Output voltage DC | 1.8 VDC | |
| Output current | 1 A | |
| Input voltage AC | 1.8-5.5 V | |
| Enclosure | XFDFN-8 | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Polarity | positive |
Download
Logistics
| Customs tariff number | 85423390 |
| Original Packaging | Reel with 5,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
