MM74HC259M | onsemi

8-Bit Addressable Latch/3- to 8-Line Decoder, SOIC-16, onsemi MM74HC259M

Order No.: 63S2655
EAN: 4099879086600
MPN:
MM74HC259M
Series: MM74HC
onsemi
MM74HC259M onsemi Logic Devices

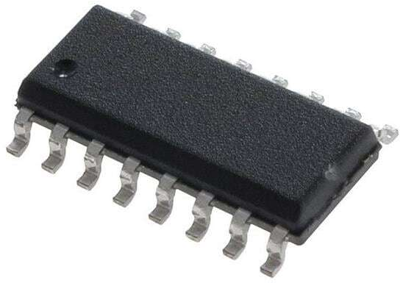

Image may differ

No longer available from manufacturer

Unit Price (€ / pc.)
0.3808 € *
Available: 302 pcs.
Leadtime: On Request **
Total Price:
0.38 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
0.3808 €

Latch, MM74HC259M, ON Semiconductor

The MM74HC259 device utilizes advanced silicon-gate CMOS technology to implement an 8-bit addressable latch, designed for general purpose storage applications in digital systems

Features

  • Typical propagation delay: 18 ns
  • Wide supply range: 2-6 V
  • Low input current: 1 µA maximum
  • Low quiescent current: 80 µA maximum (74HC Series)
Technical specifications
Output current 5.2 mA
Input voltage 6 V
Enclosure SOIC-16
max. operating temperature 85 °C
min. operating temperature -40 °C
Assembly SMD
Product type 8-Bit Addressable Latch/3- to 8-Line Decoder
Logistics
Country of origin TH
Customs tariff number 85423390
Original Packaging Bar with 50 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
