NC7S08M5X | onsemi

TinyLogic HS 2-Input AND Gate, SOT-23, onsemi NC7S08M5X

Order No.: 41S7645
EAN: 4099879085481
MPN:
NC7S08M5X
Series: NC7S
onsemi
NC7S08M5X onsemi Logic Devices

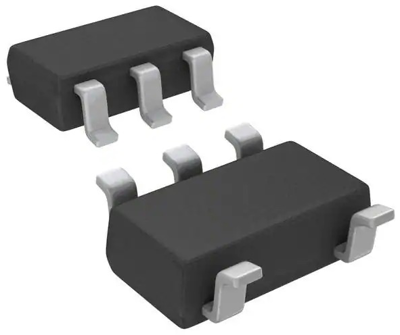

Image may differ
Unit Price (€ / pc.)
0.0476 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.05 € *
*incl. VAT plus shipping costs
**Subject to prior sale
3000 pcs.
0.0476 €

HS 2-Input gate, NC7S08M5X, ONS

The NC7S08M5X is a single 2-Input high performance CMOS AND Gate. Advanced silicon gate CMOS fabrication assures high speed and low power circuit operation over a broad VCC range. ESD protection diodes inherently guard both inputs and output with respect to the VCC and GND rails.

Features

  • Space saving
  • Low quiescent power
  • Balanced output drive
  • Halogen free
  • RoHS compliant
Technical specifications
Output current 2.6 mA
Input voltage 6 V
Enclosure SOT-23
max. operating temperature 85 °C
min. operating temperature -40 °C
Assembly SMD
Product type TinyLogic HS 2-Input AND Gate
Logistics
Country of origin US
Customs tariff number 85423390
Original Packaging Reel with 3,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
