NC7S14M5X | onsemi

TinyLogic HS -Input NAND Gate, SOT-23, onsemi NC7S14M5X

Order No.: 41S7649
EAN: 4099879085498
MPN:
NC7S14M5X
Series: NC7S
onsemi
NC7S14M5X onsemi Logic Devices

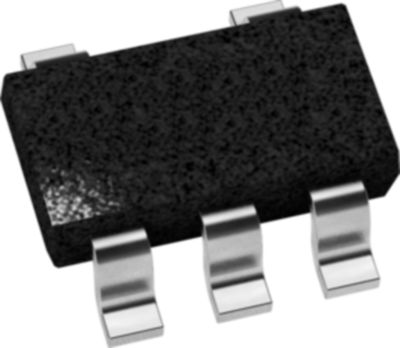

Image may differ
Unit Price (€ / pc.)
0.0476 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.05 € *
*incl. VAT plus shipping costs
**Subject to prior sale
3000 pcs.
0.0476 €

HS Inverter with trigger input, NC7S14M5X, ONS

The NC7S14M5X is a single high performance CMOS Inverter with Schmitt Trigger input. The circuit design provides hysteresis between the positive-going and negative going input thresholds thereby improving noise margins. Advanced Silicon Gate CMOS fabrication assures high speed and low power circuit operation over a broad VCC range.

Features

  • Space saving
  • Low quiescent power
  • Balanced output drive
  • Halogen free
  • RoHS compliant
Technical specifications
Output current 2.6 mA
Input voltage 6 V
Enclosure SOT-23
max. operating temperature 85 °C
min. operating temperature -40 °C
Assembly SMD
Product type TinyLogic HS -Input NAND Gate
Logistics
Country of origin US
Customs tariff number 85423390
Original Packaging Reel with 3,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
