2N7002KT1G | onsemi

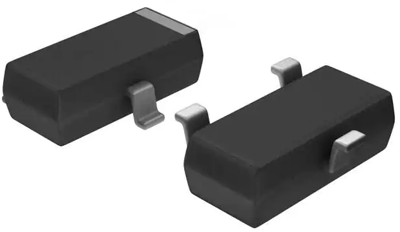

Name: Onsemi N channel small signal MOSFET, 60 V, 300 mA, SOT-23, 2N7002KT1G
Brand: onsemi
SKU: 34S1093
Price: 0.03 EUR
Availability: InStock

Onsemi N channel small signal MOSFET, 60 V, 300 mA, SOT-23, 2N7002KT1G

Order No.: 34S1093

EAN: 4099879034632

MPN:

2N7002KT1G

Series: 2N700

Image may differ

Key Specification:

Version N channel

max. Voltage 60 V

Max. current 300 mA

drain-source on resistance RDS (on) max @VGS=10V 1.6 Ω

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.0309 € *

Available: 1,373 pcs.

Leadtime: On Request **

Total Price:

0.31 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

MOSFET, 2N7002KT1G, onsemi

Features

ESD Protected
Low RDS(on)
2V Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
Halogen Free

Technical specifications

	Version	N channel
	drain-source on resistance RDS (on) max @VGS=10V	1.6 Ω
	Gate Charge Qg @10V (nC)	7x10<sup>-10</sup> C
	Enclosure	SOT-23
	max. Voltage	60 V
	Max. current	300 mA
	max. operating temperature	150 °C
	min. operating temperature	-55 °C
	Assembly	SMD
	Power loss	420 mW
