FDMS004N08C | onsemi

Name: Onsemi N channel shielded gate trench MOSFET, 80 V, 126 A, SO-8-FL/Power56, FDMS004N08C
Brand: onsemi
SKU: 54S1021
Price: 1.84 EUR
Availability: OutOfStock

Onsemi N channel shielded gate trench MOSFET, 80 V, 126 A, SO-8-FL/Power56, FDMS004N08C

Order No.: 54S1021

EAN: 4099879034786

MPN:

FDMS004N08C

Series: FDMS00

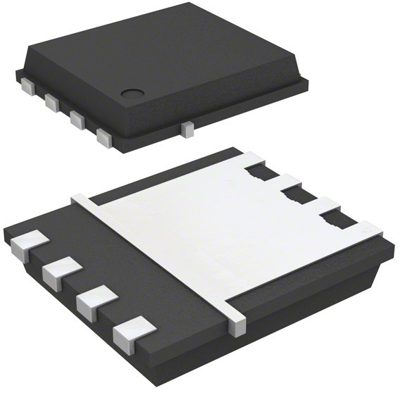

Image may differ

Key Specification:

Version N channel

max. Voltage 80 V

Max. current 126 A

drain-source on resistance RDS (on) max @VGS=10V 4 mΩ

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.8445 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

1.84 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

N-Channel MOSFET, FDMS004N08C, ON Semiconductor

Features

Shielded Gate MOSFET Technology
MAX RDSon = 4.0 mOhm @ VGS=10V, ID=44A
50% Lower Qrr than Other MOSFET Suppliers
Lower Switching Noise/EMI
MSL 1 Robust Package Design
100% UIL tested
RoHS Complient

Technical specifications

	Version	N channel
	drain-source on resistance RDS (on) max @VGS=10V	4 mΩ
	Gate Charge Qg @10V (nC)	2.5x10<sup>-8</sup> C
	Enclosure	SO-8-FL/Power56
	max. Voltage	80 V
	Max. current	126 A
	max. operating temperature	150 °C
	min. operating temperature	-55 °C
	Assembly	SMD
	Power loss	125 W
