FDMS86255 | onsemi

Name: Onsemi N channel shielded PowerGate trench MOSFET, 150 V, 45 A, SO-8-FL/Power56, FDMS86255
Brand: onsemi
SKU: 54S1015
Price: 2.99 EUR
Availability: OutOfStock

Onsemi N channel shielded PowerGate trench MOSFET, 150 V, 45 A, SO-8-FL/Power56, FDMS86255

Order No.: 54S1015

EAN: 4099879034724

MPN:

FDMS86255

Series: FDMS8

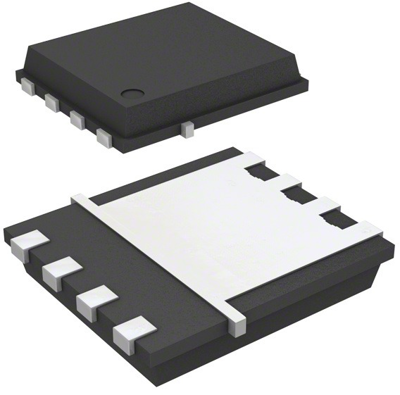

Image may differ

Key Specification:

Version N channel

max. Voltage 150 V

Max. current 45 A

drain-source on resistance RDS (on) max @VGS=10V 12.4 mΩ

Download Datasheet Technical specifications

Unit Price (€ / pc.)

2.9869 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

2.99 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Power trench , FDMS86255, onsemi

The FDMS86255 is produced using an advanced PowerTrench process that incorporates Shielded Gate technology. This process has been optimized for the on-state resistance and yet maintain superior switching performance.

Technical specifications

	Version	N channel
	drain-source on resistance RDS (on) max @VGS=10V	12.4 mΩ
	Gate Charge Qg @10V (nC)	2.9x10<sup>-8</sup> C
	Enclosure	SO-8-FL/Power56
	max. Voltage	150 V
	Max. current	45 A
	max. operating temperature	150 °C
	min. operating temperature	-55 °C
	Assembly	SMD
