FDMS8D8N15C | onsemi

Name: Onsemi N channel shielded PowerGate trench MOSFET, 150 V, 85 A, power56, FDMS8D8N15C
Brand: onsemi
SKU: 54S1014
Price: 2.52 EUR
Availability: OutOfStock

Onsemi N channel shielded PowerGate trench MOSFET, 150 V, 85 A, power56, FDMS8D8N15C

Order No.: 54S1014

EAN: 4099879034717

MPN:

FDMS8D8N15C

Series: FDMS8

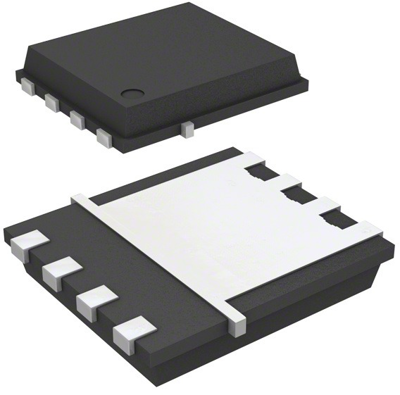

Image may differ

Key Specification:

Version N channel

max. Voltage 150 V

Max. current 85 A

drain-source on resistance RDS (on) max @VGS=10V 8.8 mΩ

Download Datasheet Technical specifications

Unit Price (€ / pc.)

2.5228 € *

Available: 0 pcs.

Leadtime: 26 Weeks **

Add to Cart

Total Price:

2.52 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Power trench , FDMS8D8N15C, onsemi

The FDMS8D8N15C is produced using advanced PowerTrench process that incorporates shielded gate technology. This process has been optimized to minimize on-state resistance and yet maintain superior switching performance with best in class soft body diode.

Technical specifications

	Version	N channel
	drain-source on resistance RDS (on) max @VGS=10V	8.8 mΩ
	Gate Charge Qg @10V (nC)	3.8x10<sup>-8</sup> C
	Enclosure	power56
	max. Voltage	150 V
	Max. current	85 A
	max. operating temperature	150 °C
	min. operating temperature	-55 °C
	Assembly	SMD
