MOC3043M | onsemi

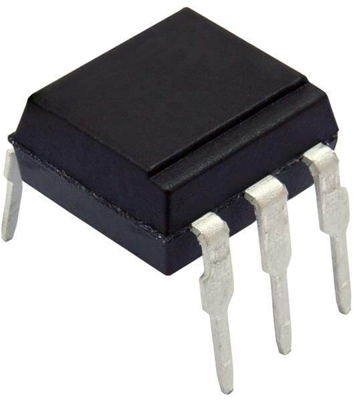

Onsemi optocoupler, DIP-6, MOC3043M
Unit Price (€ / pc.)
0.4165 € *
Available: 120 pcs.
Leadtime: On Request **
Optocoupler, MOC3043M, ONS
The MOC3043M consist of a GaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral triac driver. It is designed for use with a triac in the interface of logic systems to equipment powered from 115 VAC lines, such as teletypewriters, CRTs, solid-state relays, industrial controls, printers, motors, solenoids and consumer appliances, etc.
Features
- Simplifies logic control of 115 VAC power
- Zero voltage crossing to minimize conducted and radiated line noise
Applications
- Solenoid/Valve Controls
- Lighting controls
- Static power switches
- AC Motor drives
- Temperature control
Technical specifications
| Number of channels | 1 | |
| Output current | 60 mA | |
| Enclosure | DIP-6 | |
| Isolation voltage | 2.5 kV | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | THT |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85414900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
