MD-302 Y | Oshino
LED signal light, yellow, 15 mcd, Mounting Ø 4.4 mm, pitch 2 mm, LED number: 1, MD-302 Y
Unit Price (€ / pc.)
1.4875 € *
Available: 0 pcs.
Leadtime: On Request **
LED signal lamps, type Oshino MD-302.

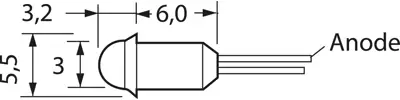

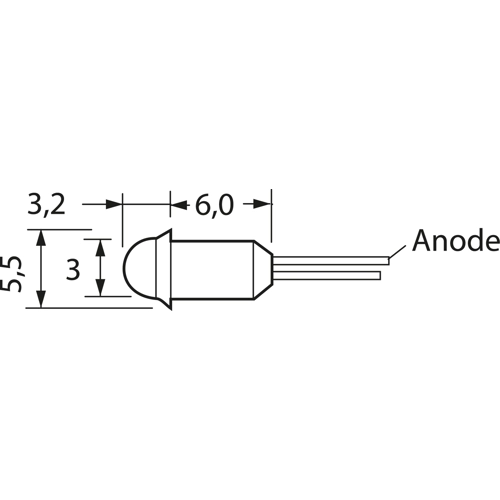

Diode diameter: 3.0 mm, for panel thickness from 1.0 to 2.0 mm. Mounting hole diameter: 4.4 mm. Housing material: Nylon, black. Connection: solder terminals. Operating temperatures: –25 to +80 °C. LED technical data: forward Voltage: 2.1 V, forward current (max.): 25 mA. Reverse Voltage (max.): 4.0 V.
Technical attributes (type, LED color, wavelength, luminous intensity (typical) at 15 mA): MD-302 Y, yellow, 585 nm, 15 mcd
Technical specifications
| Connection | solder connection | |
| Number of LEDs | 1 | |
| Diode Diameter | 3 mm | |
| Installation diameter | 4.4 mm | |
| Farbe der Beleuchtung | yellow | |
| Luminous intensity | 0.015 cd | |
| Assembly | snap-in | |
| Rated current | 15 mA | |
| Grid | 2 mm |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85318070 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
