LS T676-Q1R2-1-Z | Osram Opto Semi
LED, SMD, PLCC-2, Ø 2.4 mm, red, 633 nm, 70 mcd to 0.18 cd, 120°, LS T676-Q1R2-1-Z
Unit Price (€ / pc.)
0.1214 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.12 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1214 €
10 pcs.
0.0869 €
100 pcs.
0.0750 €
500 pcs.
0.0655 €
1000 pcs.
0.0583 €
*incl. VAT plus shipping costs
**Subject to prior sale

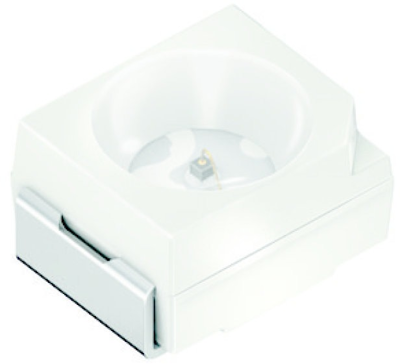

Top LED, LS T676-Q1R2-1-Z, Osram Opto Semi
Applications
- Cluster, Button backlighting
- Electronic equipment
- Interior illumination
- White goods
Technical specifications
| Radiation angle | 120 ° | |
| Number of LEDs | 1 | |
| Width | 2.8 mm | |
| On-State Voltage | 2.3 V | |
| Forward Current | 30 mA | |
| diameter | 2.4 mm | |
| Colour of the LED | red | |
| Enclosure | PLCC-2 | |
| Length | 3.2 mm | |
| Light intensity min. | 0.07 cd | |
| Light intensity typ. | 0.18 cd | |
| Lens | clear | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Wavelength | 633 nm |
Download
Logistics
| Country of origin | MY |
| Customs tariff number | 85414100 |
| MSL | MSL 2 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
