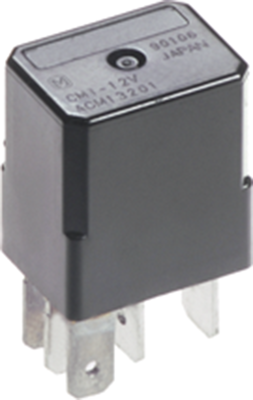

CM112J | Panasonic
Automotive relays 1 Form C (NO/NC), 12 V (DC), 96 Ω, 20 A, 14 V (DC), plug-in connection, CM112J
Unit Price (€ / pc.)
5.3074 € *
Available: 217 pcs.
Leadtime: 15 Weeks **
Total Price:
5.31 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3074 €
10 pcs.
4.6767 €
100 pcs.
4.0936 €
250 pcs.
3.9389 €
1000 pcs.
3.6890 €
*incl. VAT plus shipping costs
**Subject to prior sale
Automotive relays, type Panasonic CM.
Low inherent heat development, reduced switching noise, monostable, tab terminals; Contact type: 1 x CO. Contact material: AgSnO2. Rated switching load: NO = 35 A/14 VDC, NC = 20 A/14 VDC. Minimum switching load: 1.0 A/12 VDC. Rated coil voltage: 12 VDC. Rated coil power: 1500 mW. Ambient temperatures: –40 to +85 °C.
Type: CM1-12V, automotive relay
Technical specifications
| Anschluss | Steckanschluss | |
| Kontaktart | 1 Wechsler | |
| Kontaktmaterial | Ag-Legierung | |
| Leistung | 1.5 W | |
| Schaltspannung (DC) | 14 V | |
| Schaltstrom | 20 A | |
| Spulenspannung (DC) | 12 V | |
| Spulenwiderstand | 96 Ω |
Download
Logistics
| Ursprungsland | JP |
| Zolltarifnummer | 85364190 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
