CR-1025 | Panasonic
Lithium-button cell, CR1025, 3 V, 32 mAh, CR-1025
Order No.: 26A5052
EAN: 4099891613792
MPN:
CR-1025
Unit Price (€ / pc.)
1.4161 € *
Available: 30 pcs.
Leadtime: 1 Week **
Total Price:
1.42 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4161 €
10 pcs.
1.2733 €
50 pcs.
1.1424 €
100 pcs.
1.0591 €
*incl. VAT plus shipping costs
**Subject to prior sale

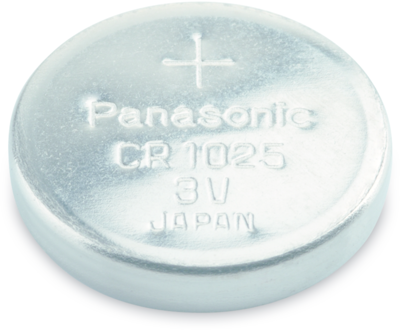

Lithium Battery, CR-1025, Panasonic
The CR1025 lithium button cell has a proven track record for devices where conventional batteries cannot be used.
Features
- Very low self-discharge; long shelf life of up to 10 years
- Can be used in a wide temperature range (-30 °C to +60 °C)
- Very high weight to performance ratio
- High leakage protection
Technical specifications
| Anschluss | Flächenkontakt | |
| Anwendung | Uhren/Geräte | |
| Ausführung | High Drain | |
| Durchmesser | 10 mm | |
| Höhe | 2 mm | |
| IEC-Bezeichnung | CR1025 | |
| max. Temperatur | 60 °C | |
| min. Temperatur | -30 °C | |
| Nennkapazität | 32 mAh | |
| Nennspannung | 3 V | |
| Technologie | Lithium |
Download
Logistics
| Ursprungsland | ID |
| Zolltarifnummer | 85065030 |
Compliance
| RoHS konform | not_relevant |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | 1,2-Dimethoxyethan; Ethylenglykoldimethylether (EGDME) |
