EEEFK1V222SV | Panasonic

Electrolytic capacitor, 2200 µF, 35 V (DC), ±20 %, SMD, Ø 18 mm, EEEFK1V222SV

Order No.: 38D5046
EAN: 4099891903176
MPN:
EEEFK1V222SV
Series: FKS
EEEFK1V222SV Panasonic Electrolytic Capacitors

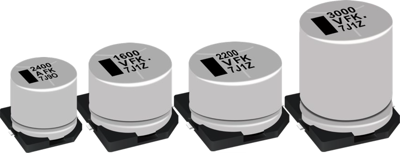

Image may differ
Unit Price (€ / pc.)
1.9076 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
238.45 € *
*incl. VAT plus shipping costs
**Subject to prior sale
125 pcs.
1.9076 €

Electrolytic capacitor, EEEFK1V222SV, Panasonic

Surface mount aluminum electrolytic capacitor is used in electronic applications for it's compact size and high capacitance value.

Features

  • High capacitance
  • AEC-Q200 compliant
  • RoHS compliant
Technical specifications
Ausführung Polar
Bauform SMD
Durchmesser 18 mm
Kapazität 2200 µF
Länge 16.5 mm
max. Temperatur 105 °C
min. Temperatur -55 °C
Nennspannung (DC) 35 V
Rippelstrom 2060 mA
Toleranz ±20 %
Logistics
Ursprungsland JP
Zolltarifnummer 85322200
Originalverpackung Rolle mit 125 Stück
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
