EEEFN0J151UR | Panasonic

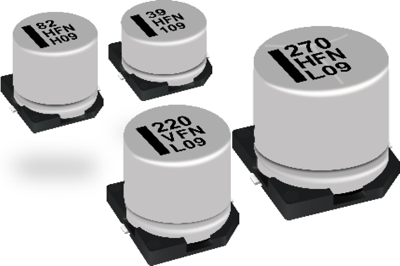

Electrolytic capacitor, 150 µF, 6.3 V (DC), SMD, Ø 5 mm, EEEFN0J151UR
Unit Price (€ / pc.)
0.1607 € *
Available: 0 pcs.
Leadtime: On Request **
Electrolytic capacitor, EEEFN0J151UR, Panasonic
Surface mount aluminum electrolytic capacitor is used in electronic applications for it's compact size and high capacitance value.
Features
- High capacitance
- AEC-Q200 compliant
- RoHS compliant
Technical specifications
| Version | polar | |
| Design | SMD | |
| diameter | 5 mm | |
| ESR (Equivalent Series Resistance) | 0.7 Ω | |
| Capacity | 150 µF | |
| Length | 5.8 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (DC) | 6.3 V | |
| Ripple current | 160 mA |
Download
Logistics
| Country of origin | MY |
| Customs tariff number | 85322200 |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
