EEEFN1C470UR | Panasonic
Electrolytic capacitor, 47 µF, 16 V (DC), SMD, Ø 4 mm, EEEFN1C470UR
Unit Price (€ / pc.)
0.1416 € *
Available: 0 pcs.
Leadtime: On Request **

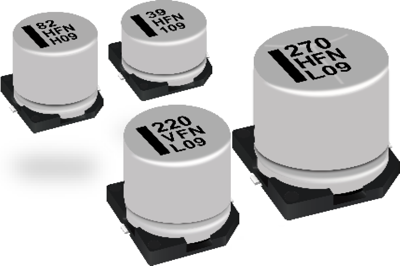

Electrolytic capacitor, EEEFN1C470UR, Panasonic
Surface mount aluminum electrolytic capacitor is used in electronic applications for it's compact size and high capacitance value.
Features
- High capacitance
- AEC-Q200 compliant
- RoHS compliant
Technical specifications
| Ausführung | Polar | |
| Bauform | SMD | |
| Durchmesser | 4 mm | |
| ESR (Äquivalenter Serienwiderstand) | 1.35 Ω | |
| Kapazität | 47 µF | |
| Länge | 5.8 mm | |
| max. Temperatur | 105 °C | |
| min. Temperatur | -55 °C | |
| Nennspannung (DC) | 16 V | |
| Rippelstrom | 90 mA |
Download
Logistics
| Ursprungsland | MY |
| Zolltarifnummer | 85322200 |
| Originalverpackung | Rolle mit 2.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
