EEEFN1V151P | Panasonic
Electrolytic capacitor, 150 µF, 35 V (DC), SMD, Ø 8 mm, EEEFN1V151P
Unit Price (€ / pc.)
0.8235 € *
Available: 500 pcs.
Leadtime: On Request **
Total Price:
0.82 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8235 €
10 pcs.
0.5498 €
100 pcs.
0.4582 €
500 pcs.
0.3987 €
1000 pcs.
0.3618 €
*incl. VAT plus shipping costs
**Subject to prior sale

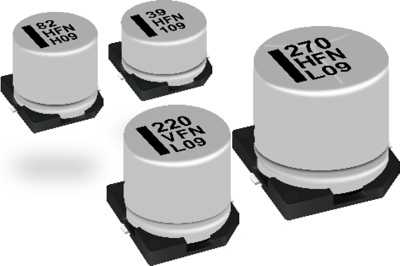

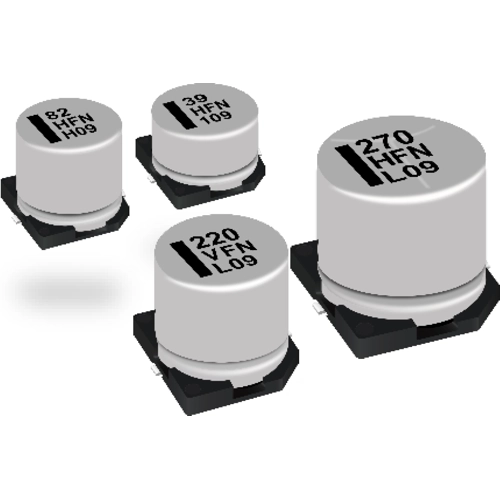

Electrolytic capacitor, EEEFN1V151P, Panasonic
Surface mount aluminum electrolytic capacitor is used in electronic applications for it's compact size and high capacitance value.
Features
- High capacitance
- AEC-Q200 compliant
- RoHS compliant
Technical specifications
| Version | polar | |
| Design | SMD | |
| diameter | 8 mm | |
| ESR (Equivalent Series Resistance) | 0.16 Ω | |
| Capacity | 150 µF | |
| Length | 10.2 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (DC) | 35 V | |
| Ripple current | 600 mA |
Download
Logistics
| Country of origin | MY |
| Customs tariff number | 85322200 |
| Original Packaging | Reel with 500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
