EEEFTV151XAP | Panasonic

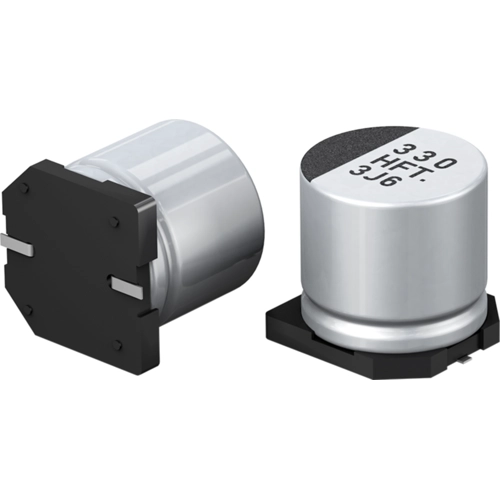

Electrolytic capacitor, 150 µF, 35 V (DC), ±20 %, SMD, Ø 6.3 mm, EEEFTV151XAP
Unit Price (€ / pc.)
0.6878 € *
Available: 1,800 pcs.
Leadtime: On Request **
Total Price:
0.69 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6878 €
10 pcs.
0.4582 €
100 pcs.
0.3820 €
500 pcs.
0.3320 €
1000 pcs.
0.3023 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electrolytic capacitor, EEEFTV151XAP, Panasonic
Surface mount aluminum electrolytic capacitor is used in electronic applications for it's compact size and high capacitance value.
Features
- Low ESR
- AEC-Q200 compliant
- RoHS compliant
Technical specifications
| Version | polar | |
| Design | SMD | |
| diameter | 6.3 mm | |
| ESR (Equivalent Series Resistance) | 0.16 Ω | |
| Capacity | 150 µF | |
| Length | 7.7 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (DC) | 35 V | |
| Ripple current | 600 mA | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | MY |
| Customs tariff number | 85322200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
