EEEHD1H1R0R | Panasonic
Electrolytic capacitor, 1 µF, 50 V (DC), ±20 %, SMD, Ø 4 mm, EEEHD1H1R0R
Unit Price (€ / pc.)
0.2749 € *
Available: 2,000 pcs.
Leadtime: On Request **
Total Price:
0.27 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2749 €
10 pcs.
0.1833 €
100 pcs.
0.1523 €
500 pcs.
0.1333 €
1000 pcs.
0.1202 €
*incl. VAT plus shipping costs
**Subject to prior sale

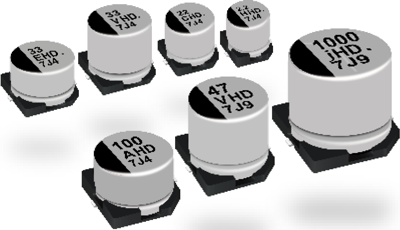

Electrolytic capacitor, EEEHD1H1R0R, Panasonic
Surface mount aluminum electrolytic capacitor is used in electronic applications for it's compact size and high capacitance value.
Features
- AEC-Q200 compliant
- RoHS compliant
Technical specifications
| Version | polar | |
| Design | SMD | |
| diameter | 4 mm | |
| Capacity | 1 µF | |
| Length | 5.8 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage (DC) | 50 V | |
| Ripple current | 7 mA | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | MY |
| Customs tariff number | 85322200 |
| Original Packaging | Reel with 2,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
