EEETP1E331AP | Panasonic
Electrolytic capacitor, 330 µF, 25 V (DC), ±20 %, SMD, Ø 10 mm, EEETP1E331AP
Unit Price (€ / pc.)
0.6533 € *
Available: 0 pcs.
Leadtime: On Request **

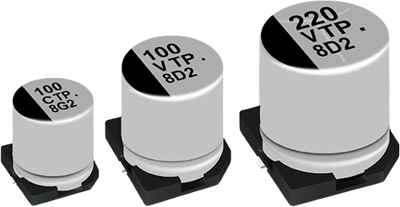

Electrolytic capacitor, EEETP1E331AP, Panasonic
Surface mount aluminum electrolytic capacitor is used in electronic applications for it's compact size and high capacitance value.
Features
- Lower ESR at Low temperature after endurance
- Automotive
- AEC-Q200 compliant
- RoHS compliant
Technical specifications
| Ausführung | Polar | |
| Bauform | SMD | |
| Durchmesser | 10 mm | |
| ESR (Äquivalenter Serienwiderstand) | 0.15 Ω | |
| Kapazität | 330 µF | |
| Länge | 10.2 mm | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -40 °C | |
| Nennspannung (DC) | 25 V | |
| Rippelstrom | 500 mA | |
| Toleranz | ±20 % |
Download
Logistics
| Ursprungsland | MY |
| Zolltarifnummer | 85322200 |
| Originalverpackung | Rolle mit 500 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
