EEETPC101XAP | Panasonic
Electrolytic capacitor, 100 µF, 16 V (DC), ±20 %, SMD, Ø 6.3 mm, EEETPC101XAP
Unit Price (€ / pc.)
0.3273 € *
Available: 0 pcs.
Leadtime: On Request **

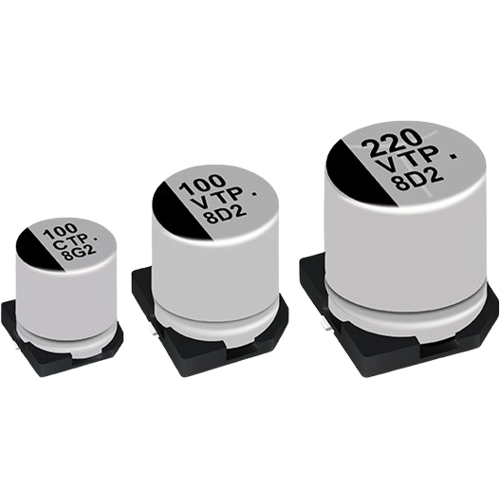

Electrolytic capacitor, EEETPC101XAP, Panasonic
Surface mount aluminum electrolytic capacitor is used in electronic applications for it's compact size and high capacitance value.
Features
- Lower ESR at Low temperature after endurance
- Automotive
- AEC-Q200 compliant
- RoHS compliant
Technical specifications
| Version | polar | |
| Design | SMD | |
| diameter | 6.3 mm | |
| ESR (Equivalent Series Resistance) | 0.45 Ω | |
| Capacity | 100 µF | |
| Length | 7.7 mm | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage (DC) | 16 V | |
| Ripple current | 197 mA | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | MY |
| Customs tariff number | 85322200 |
| Original Packaging | Reel with 900 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
