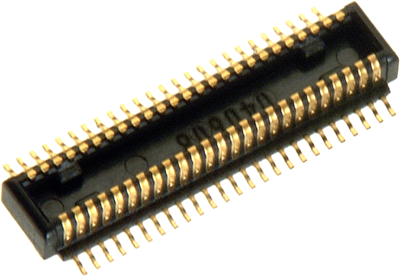

AXK826145WG | Panasonic
Connector, 26 pole, 2 rows, pitch 0.4 mm, SMD, Header, gold-plated, AXK826145WG
Unit Price (€ / pc.)
0.9044 € *
Available: 0 pcs.
Leadtime: On Request **
Connector, AXK826145WG, Panasonic
Connector, P4, Header, 0.40 mm pitch, 26 contacts.
Features
- Contributes to improved mating
- “TOUGH CONTACT” construction provides high resistance to various environments
- Design facilitates efficient mounting
Applications
- Mobile devices, such as cellular phones, digital still cameras and digital video cameras
- Board-to-board connection in measuring devices and industrial equipment
- Consumer equipment such as handheld terminals
Technical specifications
| Connection | SMD | |
| Number of rows | 2 | |
| Version | Header | |
| contact surface | gold-plated | |
| Rated voltage | 60 V | |
| Rated current | 50 A | |
| Pin number | 26 pole | |
| Grid | 0.4 mm |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
