AXT420124J | Panasonic
Connector, 20 pole, 2 rows, pitch 0.4 mm, SMD, header, gold-plated, AXT420124J
Unit Price (€ / pc.)
0.8092 € *
Available: 0 pcs.
Leadtime: On Request **

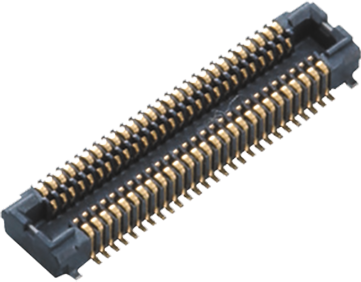

Connector, AXT420124J, Panasonic
Connector, P4S, Header, 0.40 mm pitch, 20 contacts.
Features
- Greater flexibility in connector placement
- “TOUGH CONTACT” construction provides high resistance to various environments
Applications
- Mobile devices, such as tablet PC, note PC, digital still cameras and digital video cameras
- Board-to-board connection in measuring devices and industrial equipment
- Consumer equipment such as handheld terminals
Technical specifications
| Pin number | 20-polig | |
| Number of rows | 2 | |
| Grid | 0.4 mm | |
| Connection | SMD | |
| Version | Header | |
| contact surface | vergoldet | |
| Rated voltage | 60 V | |
| Rated current | 50 A |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
