AXT430324J | Panasonic
Connector, 30 pole, 2 rows, pitch 0.4 mm, SMD, header, gold-plated, AXT430324J
Unit Price (€ / pc.)
0.9282 € *
Available: 0 pcs.
Leadtime: On Request **

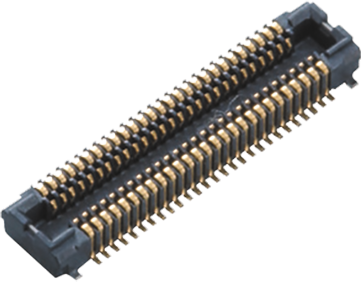

Connector, AXT430324J, Panasonic
Connector, P4S, Header, 0.40 mm pitch, 30 contacts.
Features
- Greater flexibility in connector placement
- “TOUGH CONTACT” construction provides high resistance to various environments
Applications
- Mobile devices, such as tablet PC, note PC, digital still cameras and digital video cameras
- Board-to-board connection in measuring devices and industrial equipment
- Consumer equipment such as handheld terminals
Technical specifications
| Anschluss | SMD | |
| Anzahl der Reihen | 2 | |
| Ausführung | Header | |
| Kontaktoberfläche | vergoldet | |
| Nennspannung | 60 V | |
| Nennstrom | 50 A | |
| Polzahl | 30-polig | |
| Rastermaß | 0.4 mm |
Download
Logistics
| Ursprungsland | JP |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
