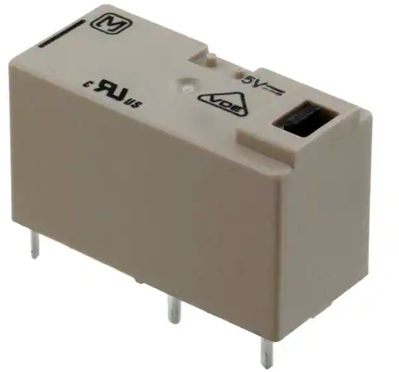

ADJ35124J | Panasonic
Relay, 1 Form B (N/C), 24 V (DC), 2304 Ω, 16 A, 250 V (AC), monostable, ADJ35124J
Unit Price (€ / pc.)
10.4958 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
Power-Relay, ADJ35124, Panasonic
Power-Relay, 1-Form-B, Single side stable, PC board, Test Button
Features
- Variety of contact arrangements
- Latching operation
- Compact with high capacity
- Low power consumption
- Long insulation distance
Applications
- FA equipment (brake circuits of industrial machine and robots, etc.)
- Electric power devices (remote surveillance devices, etc.)
- Household appliance networks (Motor control and lighting control, etc.)
- Time switches
Technical specifications
| Anschluss | Leiterplattenanschluss | |
| Kontaktart | 1 Öffner | |
| Kontaktmaterial | AgSnO2 | |
| Schaltspannung (AC) | 250 V | |
| Schaltstrom | 16 A | |
| Spulenspannung (DC) | 24 V | |
| Spulentyp | monostabil | |
| Spulenwiderstand | 2304 Ω |
Download
Logistics
| Ursprungsland | JP |
| Zolltarifnummer | 85364900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
