ADW1103HT | Panasonic
Relay, 1 Form A (N/O), 3 V (DC), 45 Ω, 16 A, 277 V (AC), monostable, ADW1103HT
Unit Price (€ / pc.)
7.3899 € *
Available: 0 pcs.
Leadtime: 16 Weeks **

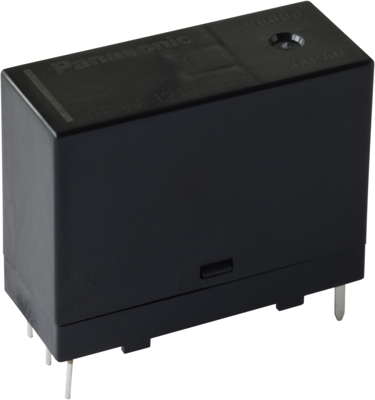

Power-Relay, ADW1103HT, Panasonic
Power-Relay, 1-Form-A, 1 coil latching, 16A-Inrush type
Features
- Low profile type available (h = 15.8 mm .622 inch)
- Inrush type available (TV-8 UL/C-UL approved)
- IEC60335-1 compliant type available (PTI 325V VDE approved)
- Reflow possible (pin-in-paste)
- Certified by UL/C-UL, VDE
Applications
- Lighting control equipment
- Smart meters
- Industrial equipment
- Security equipment
- Home appliances
- Various power supplies
Technical specifications
| Anschluss | Leiterplattenanschluss | |
| Kontaktart | 1 Schließer | |
| Kontaktmaterial | AgSnO2 | |
| Schaltspannung (AC) | 277 V | |
| Schaltstrom | 16 A | |
| Spulenspannung (DC) | 3 V | |
| Spulentyp | monostabil | |
| Spulenwiderstand | 45 Ω |
Download
Logistics
| Ursprungsland | JP |
| Zolltarifnummer | 85364900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
