ADW1206T | Panasonic
Relay, 1 Form A (N/O), 6 V (DC), 90 Ω, 8 A, 250 V (AC), bistable, ADW1206T
Unit Price (€ / pc.)
6.5212 € *
Available: 0 pcs.
Leadtime: 9 Weeks **

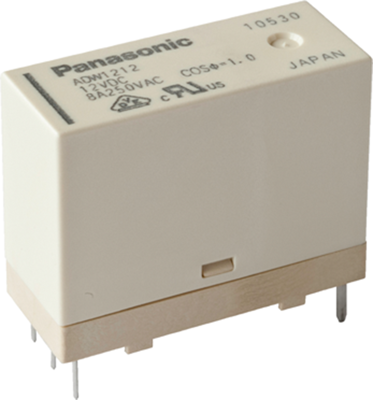

Power relay, type Panasonic DW.
For PCB mounting; Contact type: NO. Contact material: AgSnO2. Switching voltage: 250 VAC. Switching current: 8.0 A. Breaking capacity: 2000 VA. Contact resistance: max. 100 mohm. Dielectric strength coil/contact: 5000 Vrms. Pick-up/release time: max. 15 ms. Ambient temperatures: –40 to +85 °C. Certifications: VDE, UL cUL. Dimensions: L 24with LED display 10, H 18.8 mm.
With two coils.
Coil power: 400 mW.
Technical attributes (type, rated voltage, coil resistance (±10 %)): ADW1206T, 6.0 VDC, 90/90 ohm
Technical specifications
| Anschluss | Leiterplattenanschluss | |
| Kontaktart | 1 Schließer | |
| Kontaktmaterial | AgSnO2 | |
| Schaltspannung (AC) | 250 V | |
| Schaltstrom | 8 A | |
| Spulenspannung (DC) | 6 V | |
| Spulentyp | bistabil | |
| Spulenwiderstand | 90 Ω |
Download
Logistics
| Ursprungsland | JP |
| Zolltarifnummer | 85364900 |
| Originalverpackung | Stange mit 50 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
