ALDP112 | Panasonic

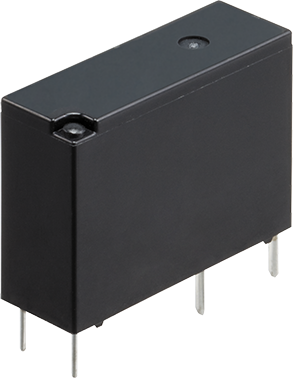

Relay, 1 Form A (N/O), 12 V (DC), 720 Ω, 5 A, 277 V (AC), ALDP112
Unit Price (€ / pc.)
1.5589 € *
Available: 0 pcs.
Leadtime: 15 Weeks **
Power relay, type Panasonic LD-P.
For PCB mounting; Contact type: 1 NO. Contact material: AgNi. Switching voltage: 277 VAC. Switching current: max. 5.0 A. Breaking capacity: 1385 VA. Contact resistance: max. 100 mohm. Dielectric strength coil/contact: 4000 Vrms. Coil power: 200 mW. Pick-up/release time: max. 10 ms. Ambient temperatures: –40 to +85 °C. Certifications: VDE, UL. Dimensions: L 20.3, W 7.0, H 15 mm.
Technical attributes (type, rated voltage, coil resistance (±10 %)): ALDP112, 12 VDC, 720 ohm
Technical specifications
| Connection | PCB connection | |
| Contact type | 1 Form A (N/O) | |
| Contact material | AgNi | |
| Switching Voltage (AC) | 277 V | |
| switching current | 5 A | |
| Coil voltage (DC) | 12 V | |
| Coil resistance | 720 Ω |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
