DE1A1BL25D | Panasonic
Relay, 1 Form A (N/O) + 1 Form B (N/C), 5 V (DC), 125 Ω, 8 A, 30 V (DC), 250 V (AC), bistable, DE1A1BL25D
Unit Price (€ / pc.)
8.1515 € *
Available: 0 pcs.
Leadtime: 15 Weeks **
Total Price:
8.15 € *
Price list
Quantity
Price per unit*
20 pcs.
8.1515 €
60 pcs.
7.4494 €
100 pcs.
6.9853 €
*incl. VAT plus shipping costs
**Subject to prior sale

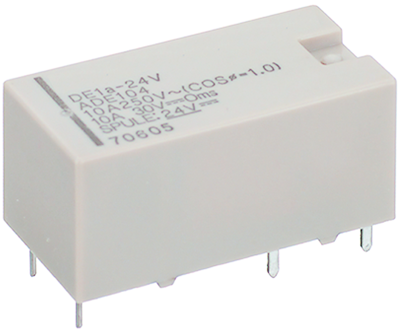

Power relay, type Panasonic DE.
With high breaking capacity, compact design; Contact material: AgSnO2. Power consumption: max. 200 mW. Response/decay time: max. 10/5.0 ms. Ambient temperatures: –40 to +70 °C. Certifications: VDE, UL, CSA.
Bistable Relay, 2 coils, 1 NO + 1 NC, type DE.
Breaking capacity: 8.0 A/250 VAC, 8.0 A/30 VDC.
Technical attributes (type, rated voltage, coil resistance (±10 %)): DE1A1B-L2-5V, 5.0 VDC, 125 ohm
Technical specifications
| Connection | PCB connection | |
| Contact type | 1 Form A (N/O) + 1 Form B (N/C) | |
| Contact material | AgSnO2 | |
| Switching Voltage (AC) | 250 V | |
| Switching Voltage (DC) | 30 V | |
| switching current | 8 A | |
| Coil voltage (DC) | 5 V | |
| Coil type | bistable | |
| Coil resistance | 125 Ω |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
