HY1Z24J | Panasonic
Relay, 1 Form C (NO/NC), 24 V (DC), 2.88 kΩ, 1 A, 60 V (DC), monostable, HY1Z24J
No longer available from manufacturer, LTB: 09.30.2024
Unit Price (€ / pc.)
4.7243 € *
Available: 148 pcs.
Total Price:
4.72 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7243 €
10 pcs.
4.1531 €
100 pcs.
3.6414 €
250 pcs.
3.5105 €
1000 pcs.
3.2844 €
*incl. VAT plus shipping costs
**Subject to prior sale

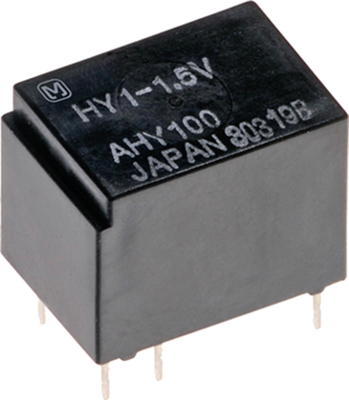

Signal relay, type Panasonic HY.
Compact design, sealed, non-polarized; Contact type: 1 CO. Contact material: silver, gold-plated. Rated load: 1.0 A/30 VDC. Switching voltage: max. 60 VDC. Switching current: max. 1.0 A. Breaking capacity: max. 30 W. Contact resistance: max. 100 mohm. Dielectric strength coil/contact: 1000 VRMS (60 s). Response/release time: max. 5.0/4.0 ms. Ambient temperatures: –40 to +70 °C. Certifications: UL, CSA.
Standard Relay with 200 mW rated coil power.
Technical attributes (type, rated voltage, coil resistance (±10 %)): HY1Z-24V, 24 VDC, 2880 ohm
Technical specifications
| Connection | PCB connection | |
| Contact type | 1 Form C (NO/NC) | |
| Contact material | Ag + Au | |
| Switching Voltage (DC) | 60 V | |
| switching current | 1 A | |
| Coil voltage (DC) | 24 V | |
| Coil type | monostable | |
| Coil resistance | 2.88 kΩ |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85364110 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
