JW2ASN12ULCSAT | Panasonic

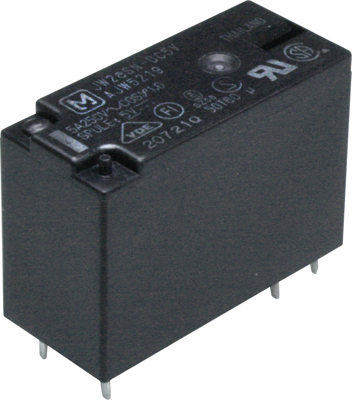

Relay, 2 Form A (N/O), 12 V (DC), 270 Ω, 5 A, 30 V (DC), 250 V (AC), monostable, JW2ASN12ULCSAT
Power relay, type Panasonic JW.
Small design, sealed, with high surge voltage strength (10000 V). Air gap/creeping distance > 8.0 mm between contacts and coil. Monostable; Coil isolation class: B or E. Contact type: 1 NO, 1 CO, 2 NO or 2 x CO. Contact material: AgSnO2. Switching voltage: max. 250 VAC/30 VDC. Switching current: depends on the version (max. 5.0 A or 10 A). Breaking capacity: depends on the version (max. 150 W/1250 VA or 300 W/2500 VA). Contact resistance: max. 100 mohm. Coil power: 530 mW. Contact/coil dielectric strength: 5000 VRMS. Response/release time: max. 15/5.0 ms. Ambient temperatures: –40 to +85 °C. Certifications: VDE, TÜV, SEV, Semko, UL, CSA.
2 x NO contacts, type JW2aSN-.
Switching current: max. 5.0 A. Breaking capacity: max. 150 W/1250 VA. Coil isolation class: E.
Technical attributes (type, rated voltage, coil resistance (±10 %)): JW2aSN-12V, 12 VDC, 270 ohm
| Anschluss | Leiterplattenanschluss | |
| Kontaktart | 2 Schließer | |
| Kontaktmaterial | AgNi | |
| Schaltspannung (AC) | 250 V | |
| Schaltspannung (DC) | 30 V | |
| Schaltstrom | 5 A | |
| Spulenspannung (DC) | 12 V | |
| Spulentyp | monostabil | |
| Spulenwiderstand | 270 Ω |
| Ursprungsland | TH |
| Zolltarifnummer | 85364900 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
