ST124FJ | Panasonic
Relay, 1 Form A (N/O) + 1 Form B (N/C), 24 V (DC), 2.4 kΩ, 8 A, 250 V (DC), 380 V (AC), monostable, ST124FJ
Unit Price (€ / pc.)
11.2217 € *
Available: 6 pcs.
Leadtime: 15 Weeks **
Total Price:
11.22 € *
Price list
Quantity
Price per unit*
1 pcs.
11.2217 €
10 pcs.
9.8770 €
50 pcs.
9.2106 €
150 pcs.
8.7941 €
500 pcs.
8.3538 €
*incl. VAT plus shipping costs
**Subject to prior sale

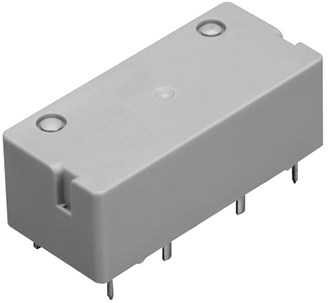

Power relay, type Panasonic ST.
Sealed, high impact and vibration resistance, monostable or bistable; Contact type: 1 x NO + 1 x NC, or 2 x NO. Contact material: AgSnO2, gold flashed. Switching voltage: max. 380 VAC/250 VDC. Switching current: max. 8.0 A. Breaking capacity: max. 150 W/2000 VA. Contact resistance: max. 30 mohm. Coil power: 240 mW. Breakdown voltage contact/coil: 3750 VRMS. Response/release time: max. 15/10 ms. Grid: 2.54 mm. Ambient temperatures: –40 to +60 °C. Certifications: VDE, SEV, UL, CSA.
Monostable Relay, 1 NO + 1 NC, type ST1-.
Technical attributes (type, rated voltage, coil resistance (±10 %)): ST1-24V-F, 24 VDC, 2400 ohm
Technical specifications
| Connection | PCB connection | |
| Contact type | 1 Form A (N/O) + 1 Form B (N/C) | |
| Contact material | AgSnO2 | |
| Switching Voltage (AC) | 380 V | |
| Switching Voltage (DC) | 250 V | |
| switching current | 8 A | |
| Coil voltage (DC) | 24 V | |
| Coil type | monostable | |
| Coil resistance | 2.4 kΩ |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
