ST26FJ | Panasonic

Name: Relay, 2 Form A (N/O), 6 V (DC), 150 Ω, 8 A, 250 V (DC), 380 V (AC), monostable, ST26FJ
Brand: Panasonic
SKU: 34G9364
Price: 9.66 EUR
Availability: OutOfStock

Relay, 2 Form A (N/O), 6 V (DC), 150 Ω, 8 A, 250 V (DC), 380 V (AC), monostable, ST26FJ

Order No.: 34G9364

EAN: 4099889410198

MPN:

ST26FJ

ST2-DC6V-F

Series: ST2

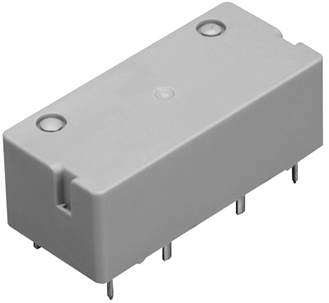

Image may differ

Key Specification:

Kontaktart 2 Schließer

Schaltstrom 8 A

Spulenspannung (DC) 6 V

Spulenwiderstand 150 Ω

Show 18 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

9.6628 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

9.66 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Power relay, ST26FJ, PANASONIC

Features

Even with small form factor, sensitive enough for direct IC-driving
High breakdown voltage
High switching capability
Sockets for PC board and soldering

Technical specifications

	Anschluss	Leiterplattenanschluss
	Kontaktart	2 Schließer
	Kontaktmaterial	AgSnO2
	Schaltspannung (AC)	380 V
	Schaltspannung (DC)	250 V
	Schaltstrom	8 A
	Spulenspannung (DC)	6 V
	Spulentyp	monostabil
	Spulenwiderstand	150 Ω

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	JP
Zolltarifnummer	85364900

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
