TQ2-L2-5V | Panasonic
Relay, 2 Form C (NO/NC), 5 V (DC), 125 Ω, 1 A, 110 V (DC), 125 V (AC), bistable, TQ2-L2-5V
Unit Price (€ / pc.)
3.6652 € *
Available: 127 pcs.
Leadtime: 15 Weeks **
Total Price:
3.67 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6652 €
50 pcs.
3.1416 €
100 pcs.
2.7846 €
500 pcs.
2.6180 €
1000 pcs.
2.4395 €
*incl. VAT plus shipping costs
**Subject to prior sale

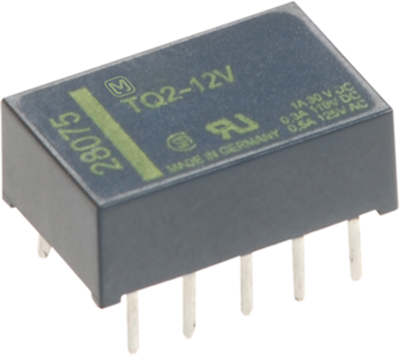

Signal relay, type Panasonic TQ.
Compact design, high sensitivity, sealed, monostable or bistable; Contact type: 2 x CO. Contact material: silver, Au plated. Rated load: 1.0 A/30 VDC, 0.5 A/125 VAC. Switching voltage: max. 110 VDC/125 VAC. Switching current: max. 1.0 A. Breaking capacity: max. 30 W/62.5 VA. Contact resistance: max. 50 mohm. Dielectric strength coil/contact: 1000 VRMS. Response/release time: max. 3.0/3.0 ms. Ambient temperatures: –40 to +70 °C. Certifications: UL, CSA.
Bistable Relay, 2 coils, type TQ2-L2-.
Technical attributes (type, rated coil voltage, coil resistance (±10 %), rated coil power): TQ2-L2-5V, 5.0 VDC, 125 ohm, 200 mW
Technical specifications
| Anschluss | Leiterplattenanschluss | |
| Kontaktart | 2 Wechsler | |
| Kontaktmaterial | Ag + Au | |
| Schaltspannung (AC) | 125 V | |
| Schaltspannung (DC) | 110 V | |
| Schaltstrom | 1 A | |
| Spulenspannung (DC) | 5 V | |
| Spulentyp | bistabil | |
| Spulenwiderstand | 125 Ω |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85364900 |
| Originalverpackung | Stange mit 50 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
