TQ2SA9ULCSAJ | Panasonic

Name: Relay, 2 Form C (NO/NC), 9 V (DC), 579 Ω, 2 A, 110 V (DC), 125 V (AC), monostable, TQ2SA9ULCSAJ
Brand: Panasonic
SKU: 34G9495
Price: 2.95 EUR
Availability: OutOfStock

Relay, 2 Form C (NO/NC), 9 V (DC), 579 Ω, 2 A, 110 V (DC), 125 V (AC), monostable, TQ2SA9ULCSAJ

Order No.: 34G9495

EAN: 4099889410532

MPN:

TQ2SA9ULCSAJ

TQ2SA-9V

Series: TQ2SA

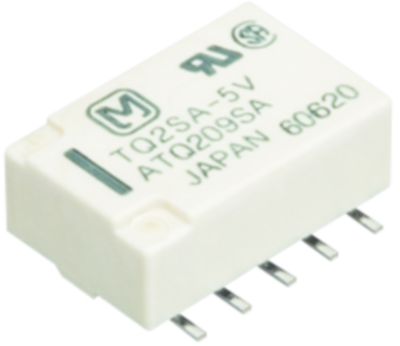

TQ2SA9ULCSAJ Panasonic Industrial Relays

Image may differ

Key Specification:

Kontaktart 2 Wechsler

Schaltstrom 2 A

Spulenspannung (DC) 9 V

Spulenwiderstand 579 Ω

Show 40 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

2.9512 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

2.95 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Signal-Relay, TQ2SA9ULCSAJ, Panasonic

Signal-Relay, 2-Form-C, Single side stable, SMD

Features

Suitable for SMD automatic insertion (SA type)
High density mounting possible
Low thermal electromotive force

Technical specifications

	Anschluss	SMD
	Kontaktart	2 Wechsler
	Kontaktmaterial	AgNi + Au
	Schaltspannung (AC)	125 V
	Schaltspannung (DC)	110 V
	Schaltstrom	2 A
	Spulenspannung (DC)	9 V
	Spulentyp	monostabil
	Spulenwiderstand	579 Ω

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Produktänderung - EN Produktänderung

Konformitätsdeklaration - EN Konformitätsdeklaration

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	JP
Zolltarifnummer	85364900

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
