TX2SA24J | Panasonic
Relay, 2 Form C (NO/NC), 24 V (DC), 4.114 kΩ, 2 A, 220 V (DC), monostable, TX2SA24J
Unit Price (€ / pc.)
3.332 € *
Available: 0 pcs.
Leadtime: 15 Weeks **

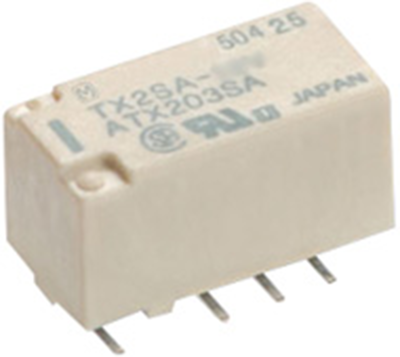

Miniature signal relay, type Panasonic TX.

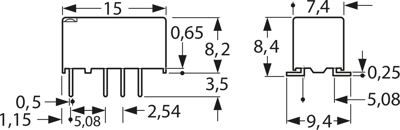

Monostable; Contact type: 2 x CO. Contact material: AgPd+Au gold plating. Switching voltage: max. 220 VDC. Switching current: max. 2.0 A. Breaking capacity: max. 60 W. Contact resistance: max. 100 mohm. Coil power: 140 mW. Dielectric strength contact/coil: 2000 Vrms. Pick-up/release time: max. 4.0 ms. Ambient temperatures: –40 to +85 °C. Certifications: UL, BSI. Dimensions: L 15, W 7.4, H 8.2 mm.
With SMD connections.
Technical attributes (type, rated voltage, coil resistance (± 10%)): TX2SA-24V, 24 VDC, 4114 ohm
Technical specifications
| Anschluss | SMD | |
| Kontaktart | 2 Wechsler | |
| Kontaktmaterial | Ag + Au | |
| Schaltspannung (DC) | 220 V | |
| Schaltstrom | 2 A | |
| Spulenspannung (DC) | 24 V | |
| Spulentyp | monostabil | |
| Spulenwiderstand | 4.114 kΩ |
Download
Logistics
| Ursprungsland | JP |
| Zolltarifnummer | 85364900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
