TXS2SA4,5J | Panasonic
Relay, 2 Form C (NO/NC), 4.5 V (DC), 405 Ω, 1 A, 110 V (DC), monostable, TXS2SA4,5J
Unit Price (€ / pc.)
3.8556 € *
Available: 130 pcs.
Leadtime: 9 Weeks **
Total Price:
3.86 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8556 €
10 pcs.
3.3915 €
100 pcs.
2.9750 €
250 pcs.
2.8560 €
1000 pcs.
2.6775 €
*incl. VAT plus shipping costs
**Subject to prior sale

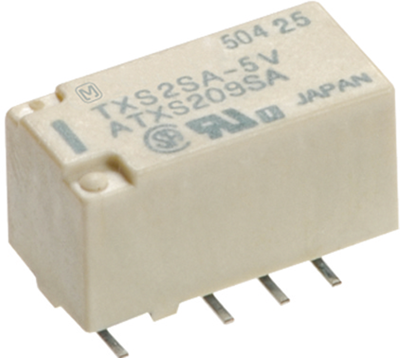

Miniature signal relay, type Panasonic TX-S .
Highly sensitive. Low thermal stress. Monostable; Contact type: 2 x CO. Contact material: silver-and-gold-plated. Switching voltage: max. 110 VDC. Switching current: max. 1.0 A. Switching power: max. 30 W (DC). Contact resistance: max. 100 mohm. Coil power: 50 mW (1.5 to 12 VDC), 70 mW (24 VDC). Coil/contact dielectric strength: 1800 VRMS. Response/release time: max. 5.0/5.0 ms. Ambient temperatures: –40 to +70 °C. Certifications: UL, CSA, BSI.
With SMD connections.
Technical attributes (type, rated voltage, coil resistance (±10 %)): TXS2SA-4.5V, 4.5 VDC, 405 ohm
Technical specifications
| Anschluss | SMD | |
| Kontaktart | 2 Wechsler | |
| Kontaktmaterial | Ag + Au | |
| Schaltspannung (DC) | 110 V | |
| Schaltstrom | 1 A | |
| Spulenspannung (DC) | 4.5 V | |
| Spulentyp | monostabil | |
| Spulenwiderstand | 405 Ω |
Download
Logistics
| Ursprungsland | JP |
| Zolltarifnummer | 85364900 |
| MSL | MSL 4 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
