SFS5L48J | Panasonic
Safety relays, 5 Form A (N/O) + 1 Form B (N/C), 48 V (DC), 4.608 kΩ, 6 A, 30 V (DC), 250 V (AC), SFS5L48J
Unit Price (€ / pc.)
26.3109 € *
Available: 0 pcs.
Leadtime: On Request **

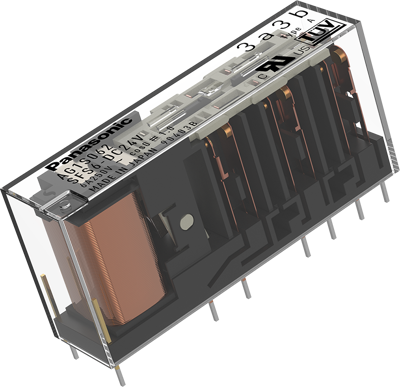

Safety relay, SFS5L48J, PANASONIC
The SFS5L48J is a slim compact safety relay with improved anti-shock properties meaning that the relay can be safely used in high shock and vibration environments such as in machine tools and other factory equipment. Also has a built-in LED that eliminates the need for design and mounting of separate LED circuit.
Features
- Fast response time is achieved
- Circuit is quickly opened to ensure safety
- High shock resistance
Applications
- Machine tools
- Robots
- Safety PLCs
Technical specifications
| Anschluss | Leiterplattenanschluss | |
| Kontaktart | 5 Schließer + 1 Öffner | |
| Kontaktmaterial | AgSnO2 | |
| Schaltleistung | 1500 VA | |
| Schaltspannung (AC) | 250 V | |
| Schaltspannung (DC) | 30 V | |
| Schaltstrom | 6 A | |
| Spulenspannung (DC) | 48 V | |
| Spulenwiderstand | 4.608 kΩ |
Download
Logistics
| Ursprungsland | JP |
| Zolltarifnummer | 85364900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
