SFY5-DC12V | Panasonic

Safety relays, 5 Form A (N/O) + 1 Form B (N/C), 12 V (DC), 215 Ω, 6 A, 30 V (DC), 250 V (AC), SFY5-DC12V

Order No.: 34G9279
EAN: 4099889422597
MPN:
SFY5-DC12V
SFY5-DC12V
Series: SFY
Panasonic
SFY5-DC12V Panasonic Monitoring Relays

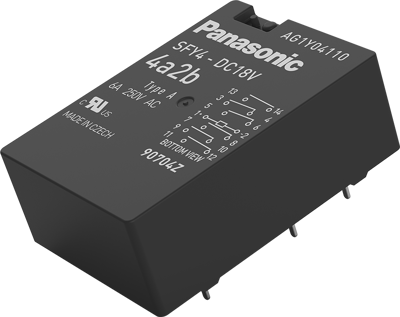

Image may differ
Unit Price (€ / pc.)
25.5731 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
25.57 € *
*incl. VAT plus shipping costs
**Subject to prior sale
20 pcs.
25.5731 €

Safety relay, SFY5-DC12V, PANASONIC

The SFY5-DC12V is a slim compact safety relay with improved anti-shock properties meaning that the relay can be safely used in high shock and vibration environments such as in machine tools and other factory equipment. Also has a built-in LED that eliminates the need for design and mounting of separate LED circuit.

Features

  • Fast response time is achieved
  • Circuit is quickly opened to ensure safety
  • High shock resistance

Applications

  • Machine tools
  • Robots
  • Safety PLCs
Technical specifications
Connection PCB connection
Contact type 5 Form A (N/O) + 1 Form B (N/C)
Contact material AgNi+Au
Breaking capacity 1500 VA
Switching Voltage (AC) 250 V
Switching Voltage (DC) 30 V
switching current 6 A
Coil voltage (DC) 12 V
Coil resistance 215 Ω
Logistics
Country of origin CZ
Customs tariff number 85364900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
