EKMB1206113 | Panasonic
PIR motion sensor, 12 m, 62°/62°, digital, 2.3-4 VDC, THT, EKMB1206113
Unit Price (€ / pc.)
13.3637 € *
Available: 0 pcs.
Leadtime: On Request **

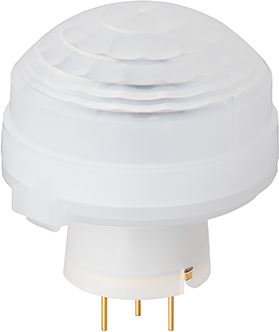

Pyroelectric infrared sensor, EKMB1206113, Panasonic
Pyroelectric infrared motion sensor from Panasonic for optimal usability and reliability. Panasonic develops and produces PIR motion sensor, which combine easy integration, high reliability and environment-friendly materials.
Features
- Easy design-in
- Small and fancy lens design
- Lead-free pyroelectric element
- Low current consumption
Technical specifications
| Anschluss | THT | |
| Ansprechzeit | 1 ms | |
| Ausgang | Digital | |
| Erfassungsabstand | 12 m | |
| Erfassungsbereich horizontal | 62 ° | |
| Erfassungsbereich vertikal | 62 ° | |
| Produkt-Art | PIR Bewegungssensor | |
| Spannung | 2,3-4 VDC | |
| Stromversorgung | 0,002 mA |
Download
Logistics
| Ursprungsland | JP |
| Zolltarifnummer | 90318080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | 4,4'-Isopropylidendiphenol |
