EKMC1693113 | Panasonic

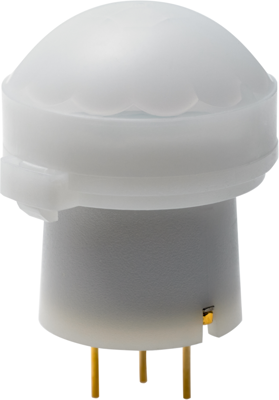

PIR motion sensor, 3 m, 91°/91°, digital, THT, EKMC1693113
Unit Price (€ / pc.)
7.3066 € *
Available: 0 pcs.
Leadtime: On Request **
Photoelectric sensor, EX-Z11A-P, PANASONIC
The thinnest sensor with dimension of 3 mm has been achieved by utilizing new semiconductor packaging technology that does not use wire bonding. The small unit size allows installation of sensor in a narrow space where only a conventional fiber sensor head could be installed before. The built-in amplifier also saves on installation space
Technical specifications
| Connection | THT | |
| Activation time | 1 ms | |
| Version | PIR motion sensor | |
| Output | digital | |
| Detecting distance | 3 m | |
| Detection range horizontally | 91 ° | |
| Detection range vertically | 91 ° | |
| Power supply | 0.17 mA |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 90318080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | 4,4'-isopropylidenediphenol |
