EKMC2606111K | Panasonic
PIR motion sensor, 12 m, 62°/62°, analog, 3-5.5 VDC, THT, EKMC2606111K
Unit Price (€ / pc.)
8.449 € *
Available: 0 pcs.
Leadtime: On Request **

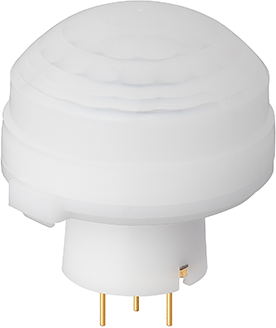

Pyroelectric infrared sensor, EKMC2606111K, Panasonic
Pyroelectric infrared motion sensor from Panasonic for optimal usability and reliability. Panasonic develops and produces PIR motion sensor, which combine easy integration, high reliability and environment-friendly materials.
Features
- Easy design-in
- Small and fancy lens design
- Lead-free pyroelectric element
- Low current consumption
Technical specifications
| Connection | THT | |
| Activation time | 1 ms | |
| Version | PIR motion sensor | |
| Output | analog | |
| Detecting distance | 12 m | |
| Detection range horizontally | 62 ° | |
| Detection range vertically | 62 ° | |
| Voltage | 3-5.5 VDC | |
| Power supply | 0.17 mA |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 90318080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | 4,4'-isopropylidenediphenol |
