PM-F45 | Panasonic

Fork light barrier, 0.006 m, NPN, 5-24 VDC, cable connection, IP64, PM-F45

Order No.: 28G1516
EAN: 4099889432206
MPN:
PM-F45
PM-F45
Series: PM-45
Panasonic

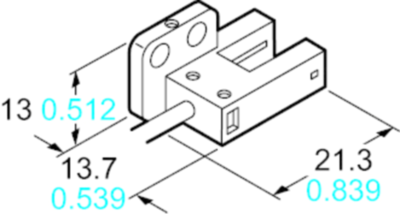

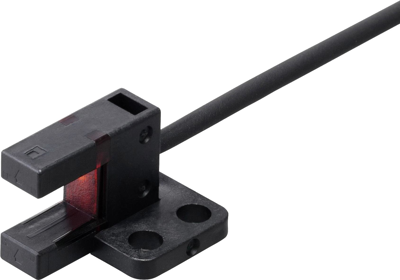

PM-F45 Panasonic Optical Sensors Image 1
PM-F45 Panasonic Optical Sensors Image 2
Image may differ
Unit Price (€ / pc.)
34.7599 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
34.76 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
34.7599 €

Reflecting light barrier, CY-111B-Z, PANASONIC

The CY-111B-Z is a cylindrical photoelectric sensor and has a diffuse reflective type with sensitivity adjuster. It has a M18 thread size for convenient mounting with a IP67 strong resistance.

Technical specifications
Connection cable connection
Activation time 0.02 ms
Version fork light barrier
Output NPN
Design K
Detecting distance 0.006 m
Switching logic light ON/dark ON
Degree of protection (IP) IP64
Voltage 5-24 VDC
Power supply 15 mA
Logistics
Country of origin JP
Customs tariff number 85365019
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
