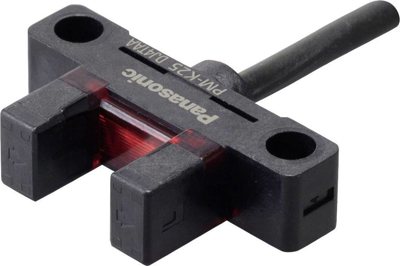

PM-K25 | Panasonic
Fork light barrier, 0.006 m, NPN, 5-24 VDC, cable connection, IP64, PM-K25
Unit Price (€ / pc.)
35.3430 € *
Available: 0 pcs.
Leadtime: 13 Weeks **
Photoelectric sensor, EX-Z12FA-P, PANASONIC
The thinnest sensor with dimension of 3 mm has been achieved by utilizing new semiconductor packaging technology that does not use wire bonding. The small unit size allows installation of sensor in a narrow space where only a conventional fiber sensor head could be installed before. The built-in amplifier also saves on installation space
Technical specifications
| Connection | cable connection | |
| Activation time | 0.02 ms | |
| Version | fork light barrier | |
| Output | NPN | |
| Design | K | |
| Detecting distance | 0.006 m | |
| Switching logic | light ON/dark ON | |
| Degree of protection (IP) | IP64 | |
| Voltage | 5-24 VDC | |
| Power supply | 15 mA |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
