PM-T45-P-C3 | Panasonic

Fork light barrier, 0.006 m, PNP, 5-24 VDC, cable connection, IP64, PM-T45-P-C3

Order No.: 28G1507
EAN: 4099889432138
MPN:
PM-T45-P-C3
PM-T45-P-C3
Series: PM-45
Panasonic

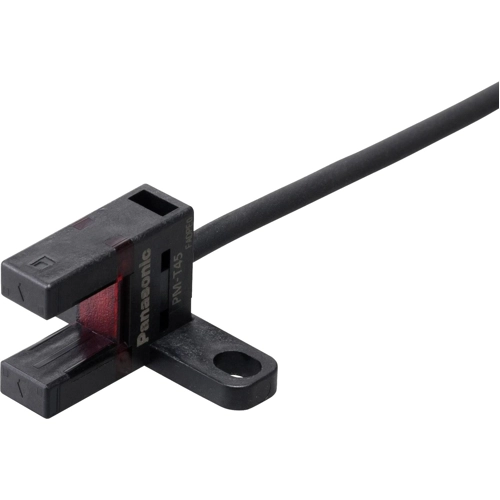

PM-T45-P-C3 Panasonic Optical Sensors Image 1
PM-T45-P-C3 Panasonic Optical Sensors Image 2
Image may differ
Unit Price (€ / pc.)
44.6726 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
44.67 € *
Price list
Quantity
Price per unit*
1 pcs.
44.6726 €
5 pcs.
41.9951 €
50 pcs.
37.1637 €
*incl. VAT plus shipping costs
**Subject to prior sale

Reflecting light barrier, CY-191A-P-Y, PANASONIC

The CY-191A-P-Y is a cylindrical photoelectric sensor and has a diffuse reflective type with sensitivity adjuster. It has a M18 thread size for convenient mounting with a IP67 strong resistance.

Technical specifications
Connection cable connection
Activation time 0.02 ms
Version fork light barrier
Output PNP
Design K
Detecting distance 0.006 m
Switching logic light ON/dark ON
Degree of protection (IP) IP64
Voltage 5-24 VDC
Power supply 15 mA
Logistics
Country of origin JP
Customs tariff number 85365019
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
