PM-Y45-C3 | Panasonic

Fork light barrier, 0.006 m, NPN, 5-24 VDC, cable connection, IP64, PM-Y45-C3

Order No.: 28G1513
EAN: 4099889432183
MPN:
PM-Y45-C3
PM-Y45-C3
Series: PM-45
Panasonic

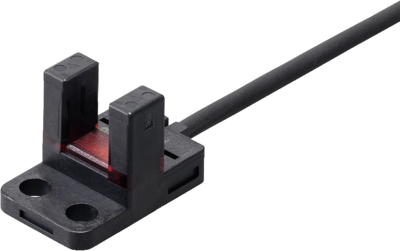

PM-Y45-C3 Panasonic Optical Sensors Image 1
PM-Y45-C3 Panasonic Optical Sensors Image 2
Image may differ
Unit Price (€ / pc.)
44.9344 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
44.93 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
44.9344 €

Micro photoelectric sensor, PM-L25-P, PANASONIC

The PM-L25-P is as ultra-small U-shaped micro photoelectric sensor. This product features a through beam detection type with the emitter and receiver contained within a single U-shaped housing. A large operating indicator lights up to make operation identification easy to see from above and from the sides. The sections where stress concentrates, such as the connecting section of the cable and internal circuit are covered with a resin. This helps prevent malfunctions caused by vibrations and impacts

Technical specifications
Connection cable connection
Activation time 0.02 ms
Version fork light barrier
Output NPN
Design K
Detecting distance 0.006 m
Switching logic light ON/dark ON
Degree of protection (IP) IP64
Voltage 5-24 VDC
Power supply 15 mA
Logistics
Country of origin JP
Customs tariff number 85365019
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
